Er með 2x M.2 tengjum, DDR4 4133MHz stuðning, Intel VROC stuðning og USB 3.1 GEN2 tengjum
Samstilling á RGB ljósum með fjölda möguleika í gegnum Aura Sync

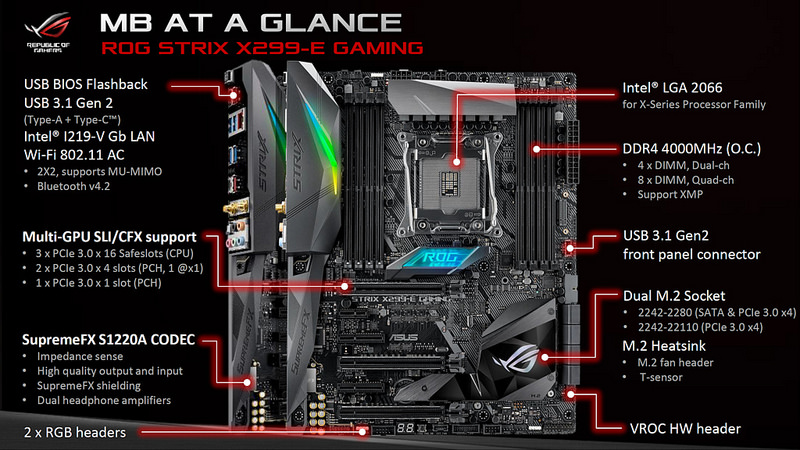

- 34971021296_f333a67037_c.jpg (186.92 KiB) Skoðað 960 sinnum
Sökkull: 2066
Örgjörvi (Hámarks stuðningur): i9
Kubbasett: Intel X299
Vinnsluminni X 6 kjarna: uppí 128GB DDR4 2133/2400/2666/2800(OC)/3000(OC)/3300(OC)/3333(OC)/3400(OC)/3466(OC)/3600(OC)/3733(OC)/3866(OC)/4000(OC)/4133(OC) MHz
Vinnsluminni X 4 kjarna: uppí 64GB DDR4 2133/2400/2666/2800(OC)/3000(OC)/3300(OC)/3333(OC)/3400(OC)/3466(OC)/3600(OC)/3733(OC)/3866(OC)/4000(OC)/4133(OC) MHz
Minnisrásir: Quad
Fjöldi minnisraufa: 8 fyrir 6 kjarna en 4 fyrir 4 kjarna
Pci-Express Slots:
PCI-Ex16: 5x
PCI-E Gen: Gen3
PCI-EX1: 1x
SATA 6Gb/s: 8x
M.2: 2x með 4x hraða
RAID 0/1/5/10
LAN 10/100/1000 með Anti-surge LANGuard og ROG GameFirst IV
Útvær/Innvær tengi:
USB2.0 tengi: 2 aftan 2 innvær
USB3.1 GEN 1 tengi: 4 aftan 4 innvær
USB3.1 GEN 2 tengi: 2 (1x A og 1x C) og 1 innvært
Hljóðtengi (aftan): 5+ Optical SPDIF
Nánari upplýsingar af heimasíðu ASUS;
Chipset
Intel® X299
Memory
Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
44-Lane CPU-
Intel® Core™ X-Series Processors Family
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0 x4 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1
28-Lane CPU-
Intel® Core™ X-Series Processors Family
3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)
2 x PCIe 3.0 x4 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1
16-Lane CPU-
Intel® Core™ X-Series Processors Family
3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
2 x PCIe 3.0 x4 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x1
Storage
Intel® Core™ X-Series Processors Family :
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
- 8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel Rapid Start
Technology
Intel® Optane™ Memory Ready
LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst IV
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth
Bluetooth V4.2
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III
USB Ports
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 4 at mid-board)
Intel® X299 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
ROG Exclusive Features
- ROG RAMCache II
- ROG CPU-Z
- ROG CloneDrive
- Overwolf
- GameFirst IV
- ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Special Features
OC Design - ASUS PRO Clock II Technology
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- Onboard Button : Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface
- ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
- M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

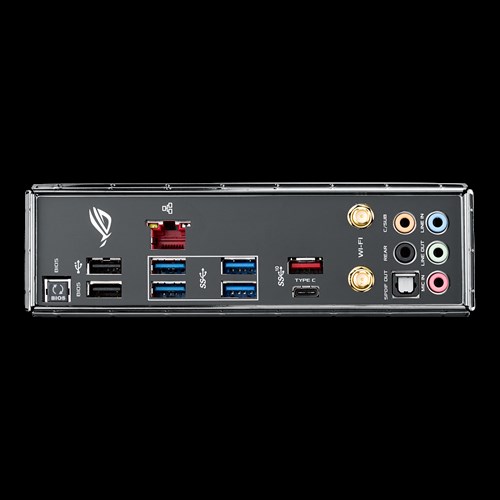

Back I/O Ports
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
VERÐ: 40.000kr, kominn með annað build og vantar ad losna vid þetta sem fyrst
! djók verd fyrir svona glaesilegt modurbord.
